CNC Stepper Motor Set HBS860H+86HBS120 NEMA34 12Nm 6A Closed Loop Stepper Drive +Motor Kit for CNC Engraving Cutting Machine

CNC Stepper Motor Set HBS860H+86HBS120 NEMA34 12Nm 6A Closed Loop Stepper Drive +Motor Kit for CNC Engraving Cutting Machine
  • Продавецguaranteedautos.us
  • Список ценUS $123.19piece
  • Продажная ценаUS $123.19piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,3 (406)

Oписание продукта

TIPS: For international delivery, there may have customs taxes in your country, we are willing to declare the products and value according your request, and according the internaional standard rules, local customs fees should be paid by buyer.

Notice:

Dear friends,in order to improve the speed and efficiency of the work and better services for buyers, please specify the declared value in invoice, to avoid unnecessary trouble at customs.
In addition,Brazil and Argentina customer pls leave your CPF or CUIT number after payment!
Russian customer best tell the full name, or will affect the delivery time.
Thank you for your assistance!




Package include:

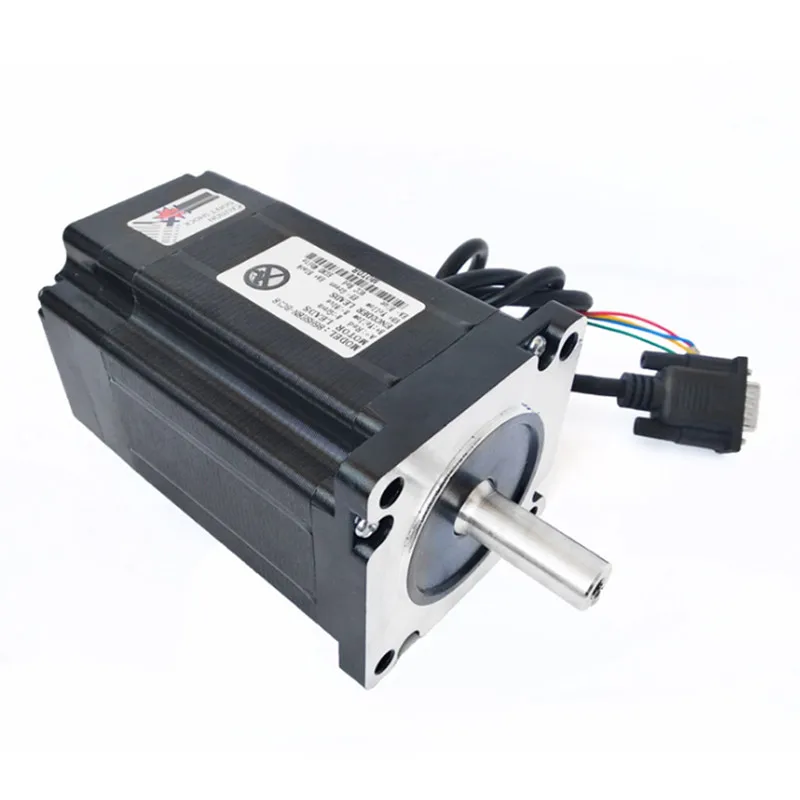

1pc 86HSE156 closed loop Servo motor  12N.m(1680oz-in)156mm length 6A

1pc HSS86 closed loop Servo motor driver 8A  AC20~80V or DC30V~110V

3M Extension wires
12mn156 1156 2



534

Wiring:

Red: A+

Green: A-

Yellow: B+

Blue: B-

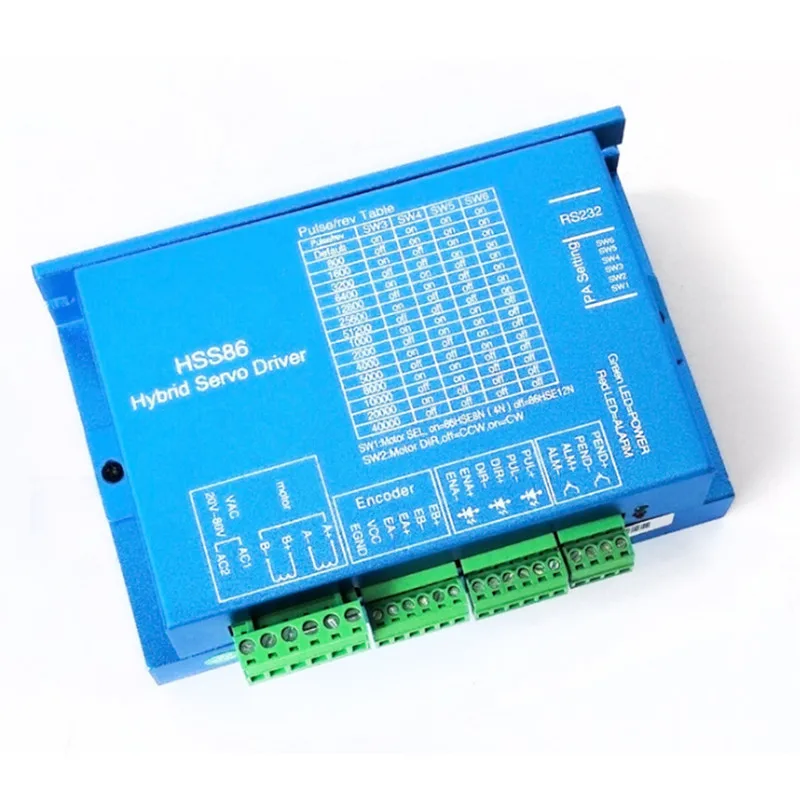

2. HSS86 2-Phase Hybrid Stepper Servo Driver

2.1) Overview

HSS86 is 2 phase nema 34 series hybrid stepper servo driver. It adopts new generation 32 bit DSP and vector control technology, which can avoid the stepper motor losing steps and ensure the accuracy of the motor. The torque reducing is much lower than open loop stepper motor when it is at higher speed. The high speed performance and torque are enhanced in a great extent. Meanwhile the current control is based on the load, that can reduce the motor temperature rising effectively, then can extend the using life of the motor. The build-in place in position and alarm output signal can help the upper monitor to monitor and control. The function of position ultra difference alarm can ensure the machine work safely. The closed loop system is an ideal improvement and a good replacement of open loop system, Besides that, it also have some function of AC servo motors, but price is just half of AC servo.



2.2) Features

2.2.1 Stepper motor closed loop system, never lose step.

2.2.2 Improve motor output torque and working speed.

2.2.3 Automatic current adjustment based on load, lower temperature rising.

2.2.4 Suitable for all mechanical load conditions (include low rigidity belt pulley and wheel), no need to adjust gain parameter.

2.2.5 Motor work smoothly and low vibration, high dynamic performance at acceleration and deceleration.

2.2.6 No vibration from high speed to zero speed.

2.2.7 Drive nema 34 series closed loop stepper motor. 4N.m 8N.m 12N.m

2.2.8 Pulses response frequency can reach 200KHZ.

2.2.9 16 kinds microsteps choice, highest 51200microsteps/rev.

2.2.10 Voltage range: AC20~80V or DC30V~110V.

2.2.11 Over-current, over-voltage and position ultra difference protection function.

2.3 ) Electrical Parameter

Voltage range

AC20~80V or DC30~110V

Peak current

Peak 8.0A (current change according to load)

Logic input current

7~20mA

Frequency

0~200KHz

Suitable motor

86HSE12N, 86HSE8N,86HSE4N

Encoder lines

1000

Insulation resistance

>=500M



2.4) Applications

Closed loop stepper system can be applied to all kinds small automatic equipment and instrument. Such as engraving machine, special industrial sewing machine, stripping machine, marking machine, cutting machine, laser phototypesetting, graph plotter, cnc machine, automatic assembly equipment and so on.

2.5) Installation Dimension



28686-2

QQ20180929154757QQ20180929154857QQ20180929155032QQ20180929154928QQ20180929155012
