HT225B Testing Equipment Concrete Test Hammer, Concrete Rebound Tester Shell Is Made of High Polymer Material

HT225B Testing Equipment Concrete Test Hammer, Concrete Rebound Tester Shell Is Made of High Polymer Material
  • Продавецguaranteedautos.us
  • Список ценUS $91.14piece
  • Продажная ценаUS $91.14piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,4 (122)

Oписание продукта

dianxiaobao_1

dianxiaobao_2

Handy HT-225A HT225A Metal Shell Concrete Test Hammer with Spare Spring in Aluminum Box Rebound Hammer 10-60MPa Test Range



Product Display3421DSC_1388DSC_1381Product Features

Features:

1) Center guide rod using imported materials, high precision, wear-resistant;
2) Use of super-hard aluminum shell to avoid on-site work injury apparatus, to extend the service life;
3) Pointer slider with external spring ring structure, both convenient for the friction adjustment, and ensures that the pointer shaft and pointer slider friction uniform, to ensure the accuracy of the instrument.
Peer-products is relatively high accuracy, quality and cheap, long service life.
Technical   Data:
Measuring ranges: 10-60MPa
Impact energy: 2.207J (0.225Kgf.m)
Spring extension: 75mm
The static friction of pointer slider: 0.5N±0.8N
Radius of spherical tip : 25mm±1mm
The average rebound values on steel anvil: 80±2
Housing dimensions: dia 54*278mm
Weight: about 1Kg

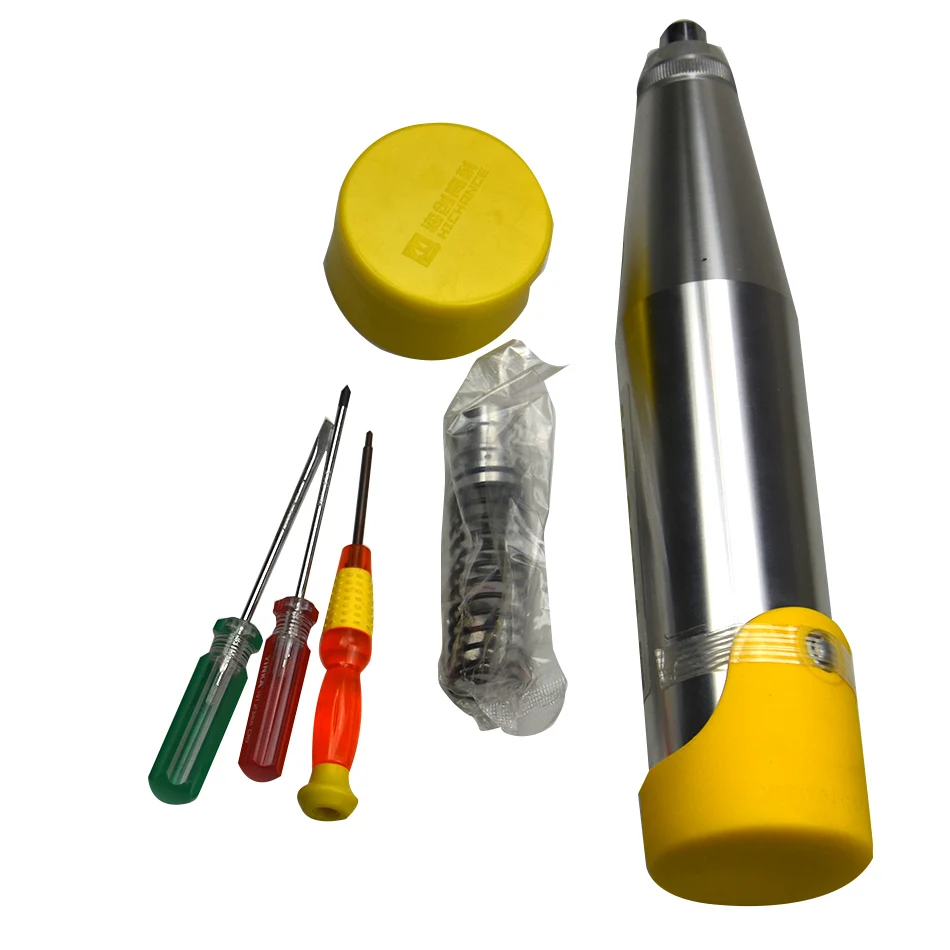

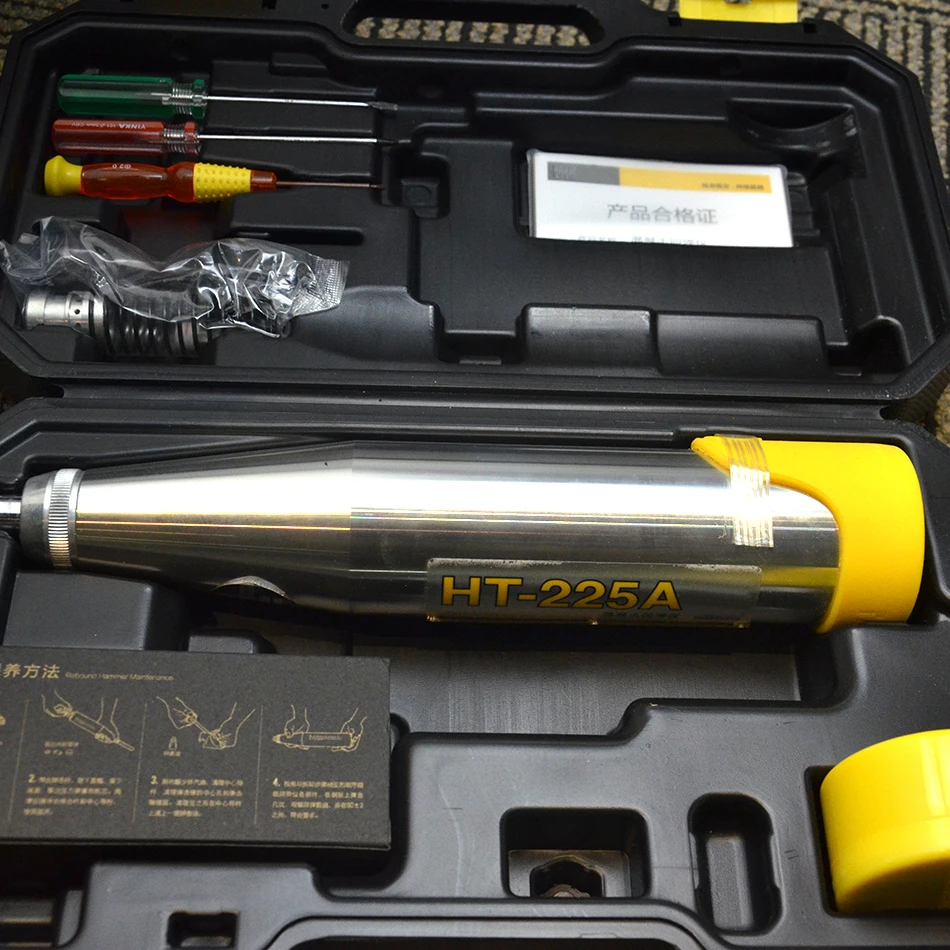

Incidental  Items  with  Instrument
1. HT-225A Concrete Test Hammer
2. Desiccant
3. Millstone
4. Technical Information with Instrument
5. Manual of HT-225 Concrete Test Hammer
6. Product Certification
7. Product three packs of Cards
