Oписание продукта

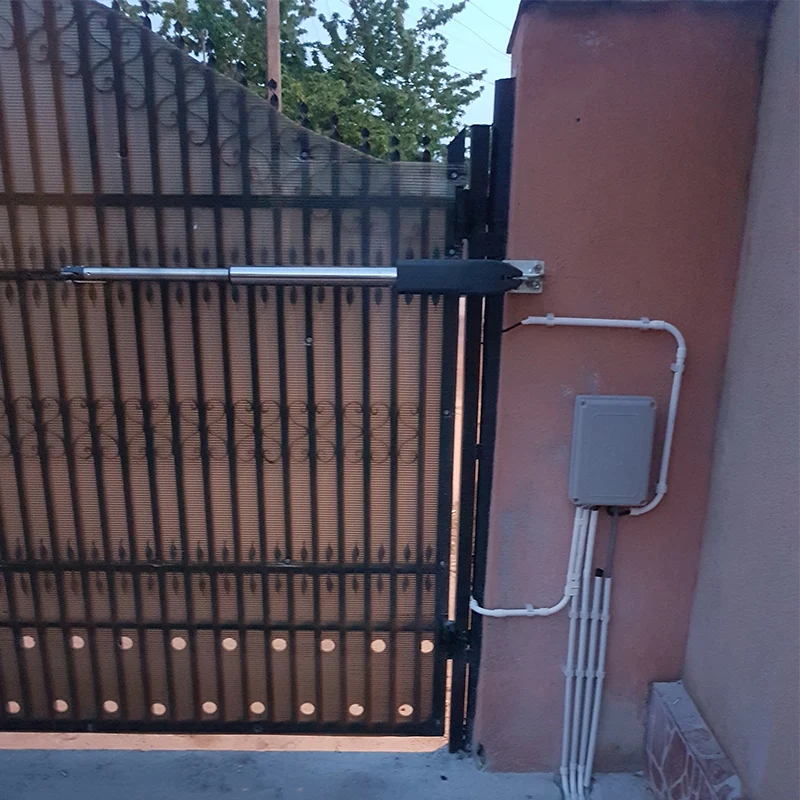

GALO 350-400kg swing gate

Standad kit components:

①2* Arms Gate Openers(drive motor)
②1* Control Box

1* A set of Hardware Accessories
④1*Rubber stopper

2* Remote Control

    1* Manual
Press the selected picture package delivery

In some countries the cold climate, we add antifreeze oil inside the motor, It can work in cold environment.

C021

Control Box details

C012

Solar power system

Solar panel, solar charge controller and back up battery can make your motor operate with out traditional power supply.
Battery Capacity: 12V 5AH
Soalr panel
Max. Power 20.0W
Max. Voltage 17.0V
Max. Cureent 1.18A
Open Circuit Voltage: 21.6V

Photocell

Features
1. The photocells should be installed at height of more than 20cm above the ground.
2. The distance between transmitter and receiver should be more than 50cm.

Wireless Keypad

Touch Sensor Bottons or Digital keys
Compatible With Most Of Fixed Codes&Rolling Codes
Two Channel Output
LED Indicator&Backlight
Security Lockout
IP Rating 53

HTB1ENiJfDlYBeNjSszcq6zwhFXai



2G/3G GSM Controller

1. No call charges
2. Multipleapplications.
3. Secure.
4. Can be operated from anywhere, no distance limit.
5. Add or remove users by Simple SMS Text command.
6. Up to 99 authorized phone numbers can be configured.
7. Two Digital inputs for door sensor, motion sensors or other sensors to protect your door and windows.

21





QQ20171001085750

SWING GATE OPERATOR
1. 2 SIDE terminal is used for connecting any external device that operates double
gate
2. COM terminal is COMMON used for connecting the “ground” of external devices
3. 1 SIDE terminal is used for connecting any external device that operates single gate
4. Swipe Card terminal is used for connecting any external devices that will operate to
open the gate
5. COM terminal is COMMON used for connecting the “ground” of external devices
6. Infrared terminal is used for connecting photo electric sensor
7. 12V DC output is used for connecting photo electric sensor (Continuous output
current <=200mA)
8. 24V battery output is used for connecting the back up battery +
9. 24V battery output is used for connecting the back up battery -
10. 24V DC output is used for connecting external device. (such as photo electric
sensor, max current output 1A)
11. GND is used for connecting the “ground” of external devices
12. 24V DC lamp output is used for connecting flash light +.
13. 24V DC lamp output is used for connecting flash light -.
14. 24V DC lock output—the NF terminal which used for connecting the electric lock
15. COM is COMMON used for connecting the “ground” of lock
16. 24V DC lock output—the NA terminal which used for connecting the magnetic
lock
17. 24V DC alarm output
18. 24V DC alarm output
19. and 20. Motor1 terminal is used for connecting the motor 1 installed on the gate
that opens later and close first. This terminal connect 1st red wire (counted from your
left hand side to right hand side)
21. and 22. Motor2 Delay terminal is used for connecting the motor 2 installed on the
gate that opens first and close later. This terminal connect 1st blue wire (counted
from your left hand side to right hand side). NOTE! If for single gate, the gate motor
just can connect the Motor2 Delay terminal.
23. AC24V input is used for connecting the transformer
24. AC24V input is used for connecting the transformer
25. digital display is used for showing you the setting data
26. INC+ is used for figure increase when setting the data
27. FUN is used for store the data
28. DEC- is used for figure decrease when setting the data
29. Learning button is used for program/remove remote

       Need more clear instructions and installation tutorial Please contact the seller to use e-mail send
