Resiliometer Portable Schmidt Concrete Test Hammer ZC3 A with NDT Rebound Hammer

Resiliometer Portable Schmidt Concrete Test Hammer ZC3 A with NDT Rebound Hammer
  • Продавецguaranteedautos.us
  • Список ценUS $120.60piece
  • Продажная ценаUS $120.60piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,3 (244)

Oписание продукта

Resiliometer Portable Schmidt Concrete Test Hammer ZC3-A with NDT Rebound Hammer

20



HTB1cXGKNpXXXXXjapXXq6xXFXXXG


Description:
The meter is in accordance with technical regulation of JGJ/T23-2001, used for testing of concrete compressive strength within the scope of 10-60Mpa, with the system standard energy of 2.207J, and value indicating system of pointer direct reading. Our concrete resiliometer has been approved as "Recommended Product for Engineering Construction" by the Ministry of Construction. Shanxi Institute of Building Research, who composed "Testing Concrete Compressive Strength Technical Regulation of JGJ/T23-2001 with Springback Method", supervises the manufacturing process.

II.Characteristics:
Light (saving 2/3 forces compared with counterpart products), flexible, inexpensive, power-free, easy to master; the button applies stretching technics and is not easy to fall off; the pointer is easy to adjust friction. Therefore, it is the first choice applicable for on-the-spot NDT.

HTB1WdDhNpXXXXb9XXXXq6xXFXXX9
III.Main Technical Parameter:
Length of pointer: 20.0±0.2(mm)
Friction of pointer: 0.65±0.15(N)
Sphere semidiameter at the end of the flip rod: 25±1.0(mm)
Rigidity of flip tensioned spring: 785.0±40.0(N/m)
Location of flip hammer\'s hook release: "100" at the scale mark
Work length of flip tensioned spring: 61.5.0±0.3(mm)
Strike length of flip hammer: 75±0.3
Hop location of the flip hammer: "0" at the graduated scale
Fixed value of steel anvil: 80±2 (our products are controlled between 80-81)

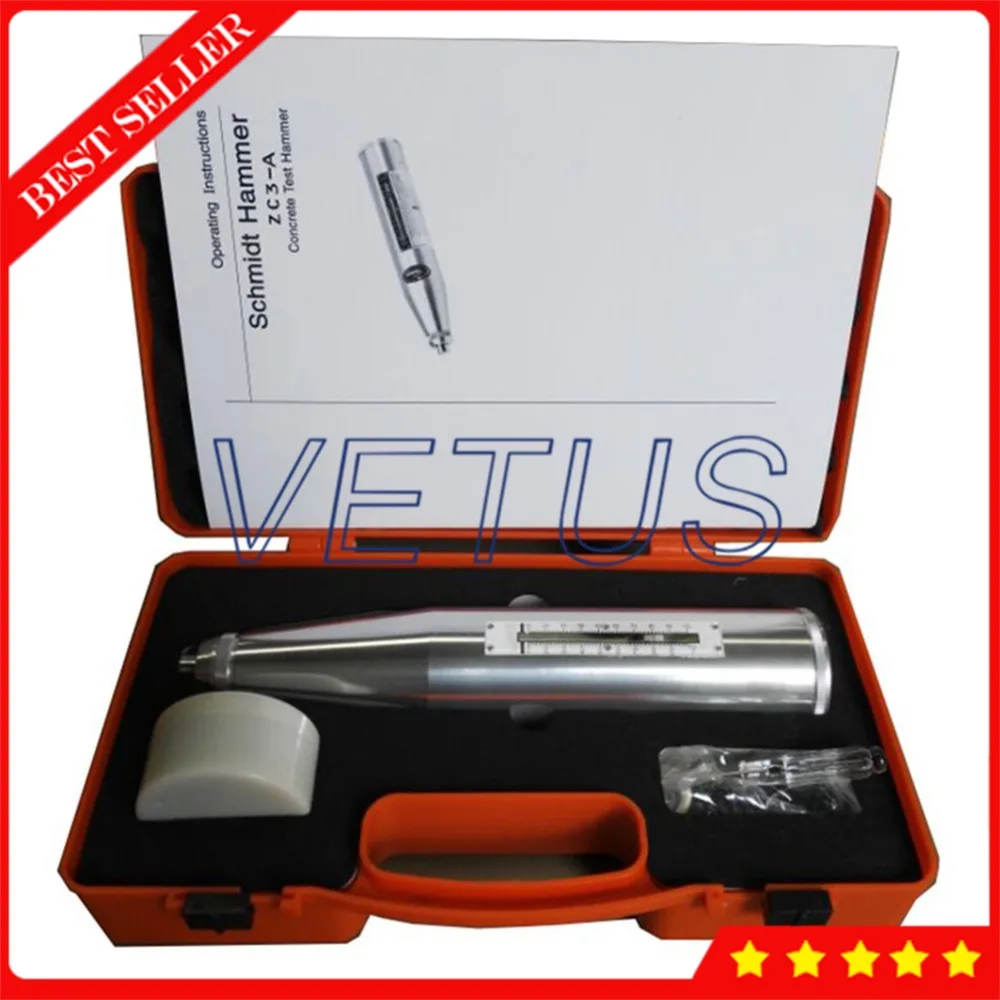

IV.Shipping
A resiliometer
Grindstone,
Flip tension spring
Buffer spring
Screwdriver
Instruction

HTB1puy_NpXXXXXQXFXXq6xXFXXXW

HTB1GDi6NpXXXXa1XFXXq6xXFXXXR

65132784

HTB1WkGHNpXXXXbZapXXq6xXFXXXE

Shipping Detail
We Ship to Worldide, except APO/FPO
Items are shipped from China using Airmail, reach most of the countries within 15 to 25 business days
Delivery time depends on destination and other factors, it may takes up to 30 business day

Payment
We accpet Alipay and Paypal, Credit Card, Money Booker, T/T, Western Union,here
All major credit cards are accepted through secure payment processor ESCROW.

Warranty and Guarantee
12 Months Warranty . Buy with confidence
If you are not satisfied when you receive your item,please return it within 14 days for a replacement or money bac, Please contact us before you return it.
If item is defective in 3 month, we will send you a relacement without extra charge, Or offer refund after we receive the defective item.
If item is defective after 3 months, you can still send it back to us.  We will send you a new one after receiving the defective item. But you have to pay the extra shipping fee.

Feedback
We depend on customers\' satisfaction to succeed, your positive feedback of 5 stars is very important to us, if you are satisfied with our product, please leave us a positive feedback ( 5 stars
Please do not leave us a negative feedback before contacting with us, we will try our best to solve the problem, please help us to improve

Other Policies
We are not responsible for any custom duty or import tax.
All emails will be answered within 1 business day,  If you do not receive our reply, please kindly re-send your email and we will reply to you as soon as possible.
Serious Buyer Only! Please place bid only if you agree with all the items

FAQ
Q: Is there any Tracking Number for my item?
A: If you want the parcel to be tracked , please choose the China post air mail, Singapore post, or Express
Q: Does this product come with retail package?
A: We have declared the packing detail on the description of each product, please check it, Thank you !
Q: I am a reseller, I would like to buy many pieces of your item, what\'s the wholesale price?
A: If you would like to buy large quantity, please send email to us, we will give you the best price, thanks!
